Cable Assembly, All Sizes

$151.00$920.00

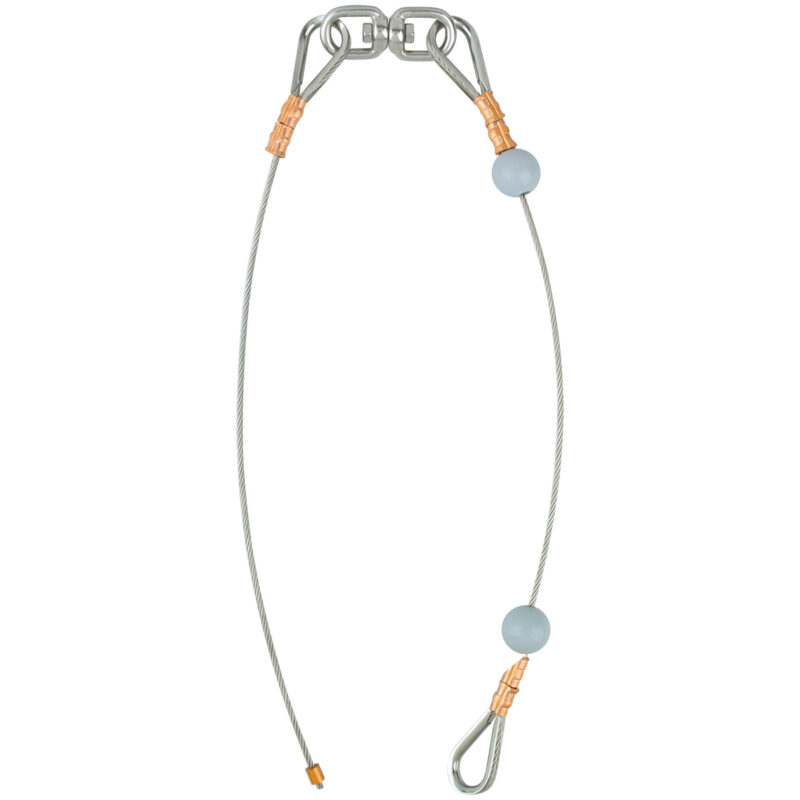

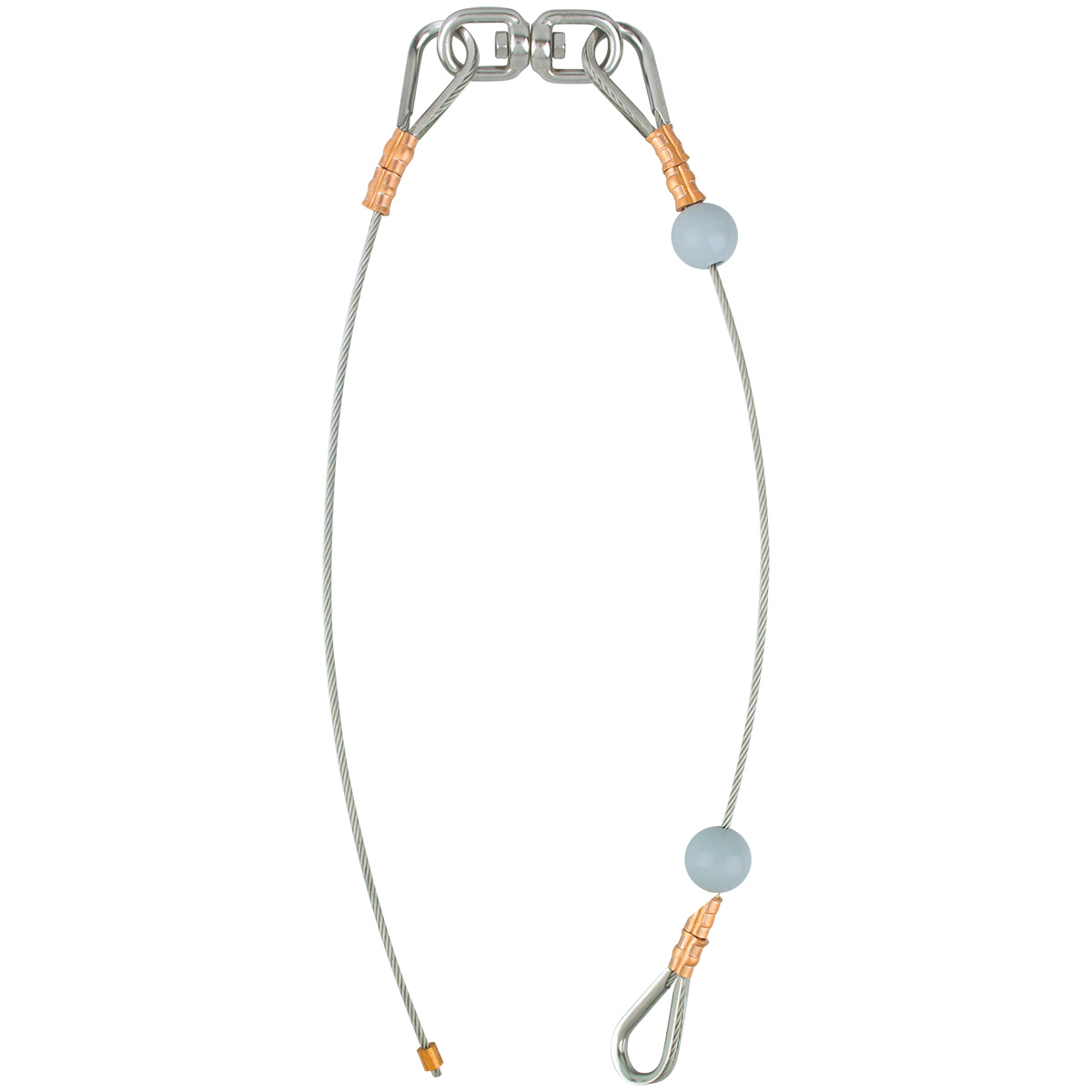

Eder Flag Company’s cable assemblies are expertly crafted using durable 1/8″ and/or 3/16″ stainless steel aircraft cable, featuring a stainless steel swivel to counteract unraveling caused by truck assembly rotation. The upper cable section comes with a stainless steel thimble, 2 copper crimps, and two ball cable stops. Note that these parts aren’t pre-attached for shipping efficiency but can be easily assembled in the field. Tailored for flagpoles with a winch installed at 4′ above grade, each cable assembly combines strength and convenience for reliable flag displays.

Exposed Height of Flagpole Lower Inside Cable Upper Outside Cable
20′ 3/32″ Diameter, 17′ Length 1/8″ Diameter, 17′ Length
25′ with 5″ Butt Diameter 3/32″ Diameter, 21′ Length 1/8″ Diameter, 21′ Length
25′ with 6″ Butt Diameter 1/8″ Diameter, 21′ Length 1/8″ Diameter, 21′ Length
30′ with 5″ Butt Diameter 3/32″ Diameter, 27′ Length 1/8″ Diameter, 27′ Length
30′ with 6″ Butt Diameter 1/8″ Diameter, 27′ Length 1/8″ Diameter, 27′ Length
35′ with 5″ Butt Diameter 3/32″ Diameter, 31 1/2′ Length 1/8″ Diameter, 31 1/2′ Length
35′ with 6″ Butt Diameter 1/8″ Diameter, 31 1/2′ Length 1/8″ Diameter, 31 1/2′ Length
40′ 1/8″ Diameter, 37′ Length 3/16″ Diameter, 37′ Length
50′ 1/8″ Diameter, 46′ Length 3/16″ Diameter, 46 1/2′ Length
60′ 1/8″ Diameter, 56 1/2′ Length 3/16″ Diameter, 57′ Length
70′ 1/8″ Diameter, 66 1/2′ Length 3/16″ Diameter, 67′ Length
80′ 1/8″ Diameter, 76 1/2′ Length 3/16″ Diameter, 77′ Length
90′ 1/8″ Diameter, 86 1/2′ Length 3/16″ Diameter, 87′ Length
100′ 1/8″ Diameter, 96 1/2′ Length 3/16″ Diameter, 97′ Length
110′ 1/8″ Diameter, 106 1/2′ Length 3/16″ Diameter, 107′ Length
120′ 1/8″ Diameter, 116 1/2′ Length 3/16″ Diameter, 117′ Length
130′ 1/8″ Diameter, 126 1/2′ Length 3/16″ Diameter, 127′ Length
140′ 1/8″ Diameter, 136 1/2′ Length 3/16″ Diameter, 137′ Length
150′ 1/8″ Diameter, 146 1/2′ Length 3/16″ Diameter, 147′ Length
160′ 1/8″ Diameter, 156 1/2′ Length 3/16″ Diameter, 157′ Length
170′ 1/8″ Diameter, 166 1/2′ Length 3/16″ Diameter, 167′ Length
180′ 1/8″ Diameter, 176 1/2′ Length 3/16″ Diameter, 177′ Length
190′ 1/8″ Diameter, 186 1/2′ Length 3/16″ Diameter, 187′ Length
200′ 1/8″ Diameter, 196 1/2′ Length 3/16″ Diameter, 197′ Length



Description

Eder Flag Company meticulously crafts the cable assembly for internal halyard flagpoles to enhance durability and functionality. Constructed primarily in either 1/8″ or 3/16″ stainless steel aircraft cable, this assembly tailors reliability for supporting flags on internal halyard flagpoles.

The incorporation of stainless steel aircraft cable in 1/8″ and/or 3/16″ thickness ensures robustness and longevity, meeting the demands of various flagpole sizes and wind conditions. The stainless steel composition adds corrosion resistance, further contributing to the assembly’s durability.

A notable feature of this cable assembly is the inclusion of a stainless steel swivel. This swivel plays a crucial role in minimizing the impact of unraveling caused by the rotation of the truck assembly. This design consideration not only enhances the lifespan of the cable but also ensures a smooth and consistent flag-raising experience.

The upper cable section includes a stainless steel thimble, two copper crimps, and two ball cable stops for functionality. These elements collectively contribute to the secure attachment of the flag. Due to the necessity of threading this upper section through the truck assembly, we do not pre-attach these parts before shipment.

Instead, complete assembly of these components in the field allows for seamless integration with the flagpole’s specific requirements, ensuring optimal performance.

We specifically design each cable assembly for flagpoles equipped with a winch installed at 4′ above grade.¬†Tailored for diverse needs, it provides a standardized yet customizable solution for various flagpole installations, showcasing commitment and versatility. The winch’s height aligns with ergonomic considerations, ensuring users operate the internal halyard system effectively and conveniently.

In summary, Eder Flag Company’s cable assembly for internal halyard flagpoles stands out for its durable construction. It also incorporates thoughtful design elements, such as the stainless steel swivel. It also showcases adaptability to different flagpole configurations. Reflecting a commitment to quality and innovation, it ensures flags can be proudly displayed with longevity.

Additional information

Weight 1.4 lbs
Exposed Height of Flagpole

20', 25' with 5" Butt Diameter, 25' with 6" Butt Diameter, 30' with 5" Butt Diameter, 30' with 6" Butt Diameter, 35' with 5" Butt Diameter, 35' with 6" Butt Diameter, 40', 50', 60', 70', 80', 90', 100', 110', 120', 130', 140', 150', 160', 170', 180', 190', 200'
